In stock, ships from Germany – dispatched directly from Lichtentanne (Saxony), no dropshipping.

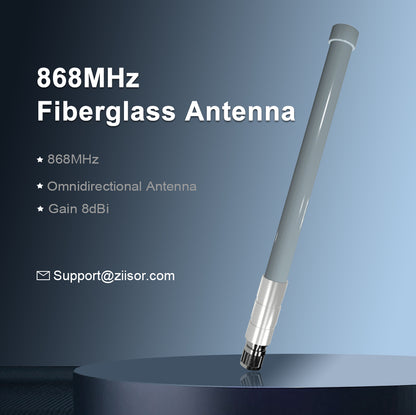

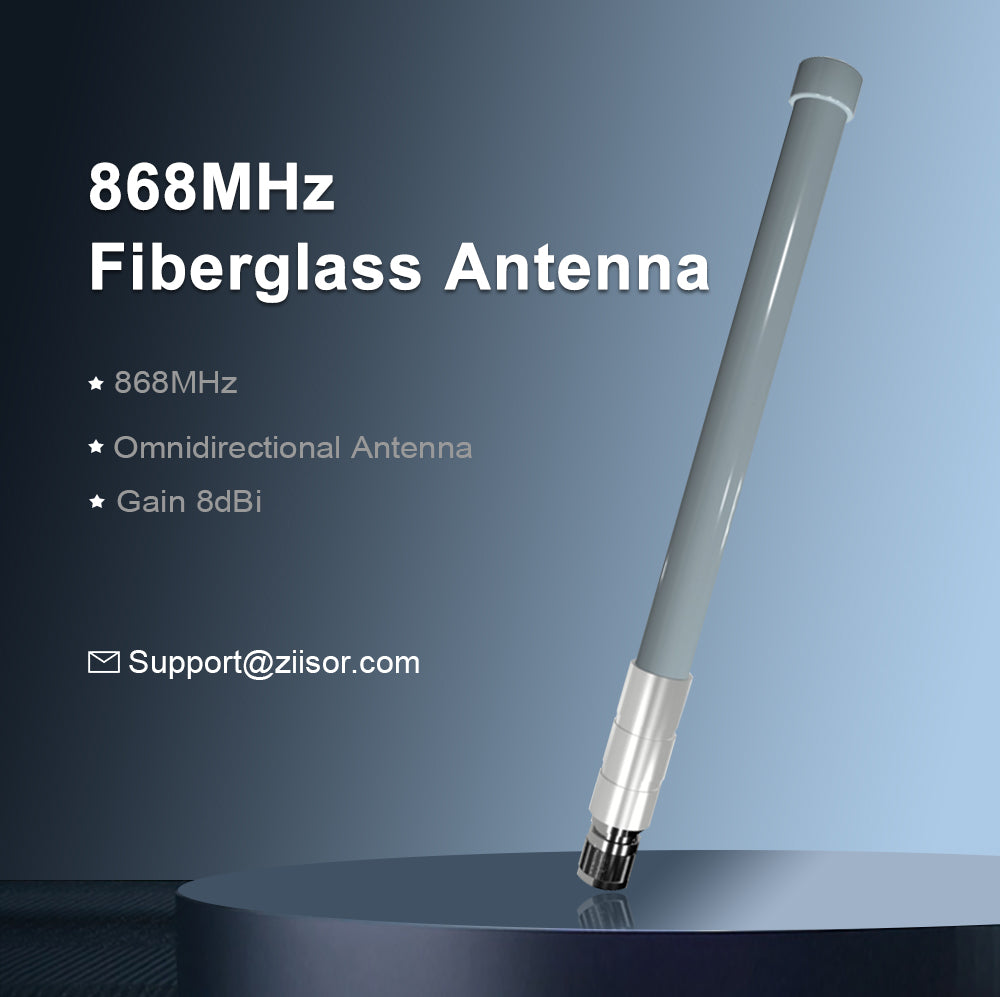

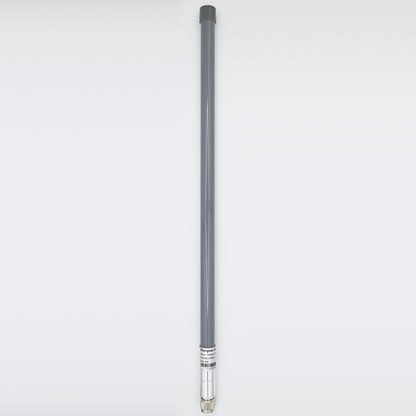

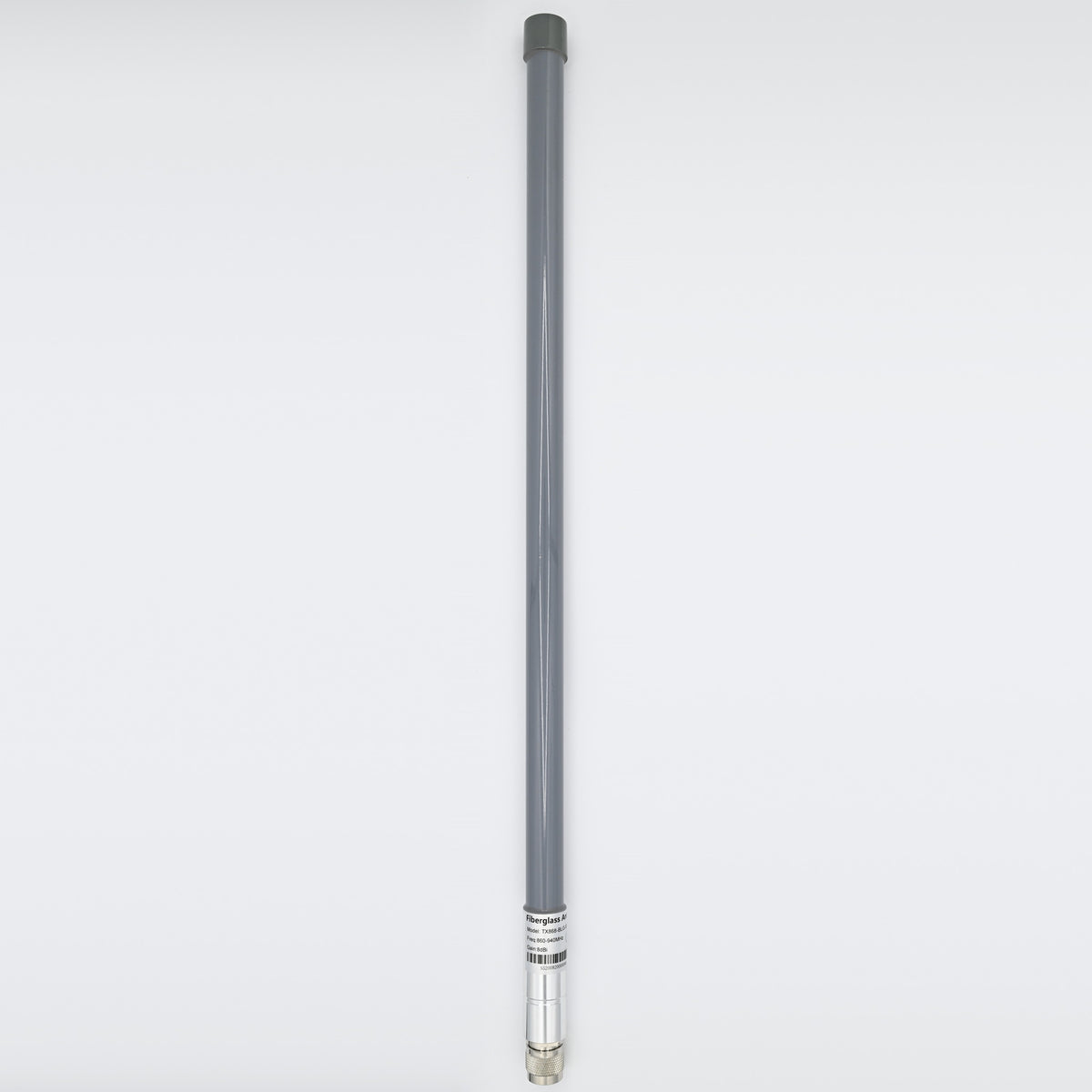

The flagship of the ZIISOR series for maximum range: an 868 MHz omnidirectional antenna in weatherproof fiberglass construction with multiple stacked radiating elements. The right choice for exposed locations – repeaters on hilltops, rooftops and masts where every decibel of range counts. Its flat radiation pattern (80° vertical beamwidth) concentrates the energy towards the horizon – ideal for long, level radio links.
Typical applications
Exposed repeater sites, Helium hotspots and LoRaWAN gateways with long-haul requirements – anywhere the counterpart stations sit close to the horizon line. Where counterpart stations are located well below the site, the ZIISOR TX868-BLG-26 (3 dBi) or the ZIISOR TX868-BLG-40 (5.5 dBi) are the better choice.
Technical Specifications (per manufacturer datasheet)
- Frequency range: 860–940 MHz
- Antenna gain: 8 dBi
- Radiation pattern: omnidirectional, vertically polarized, 80° vertical beamwidth

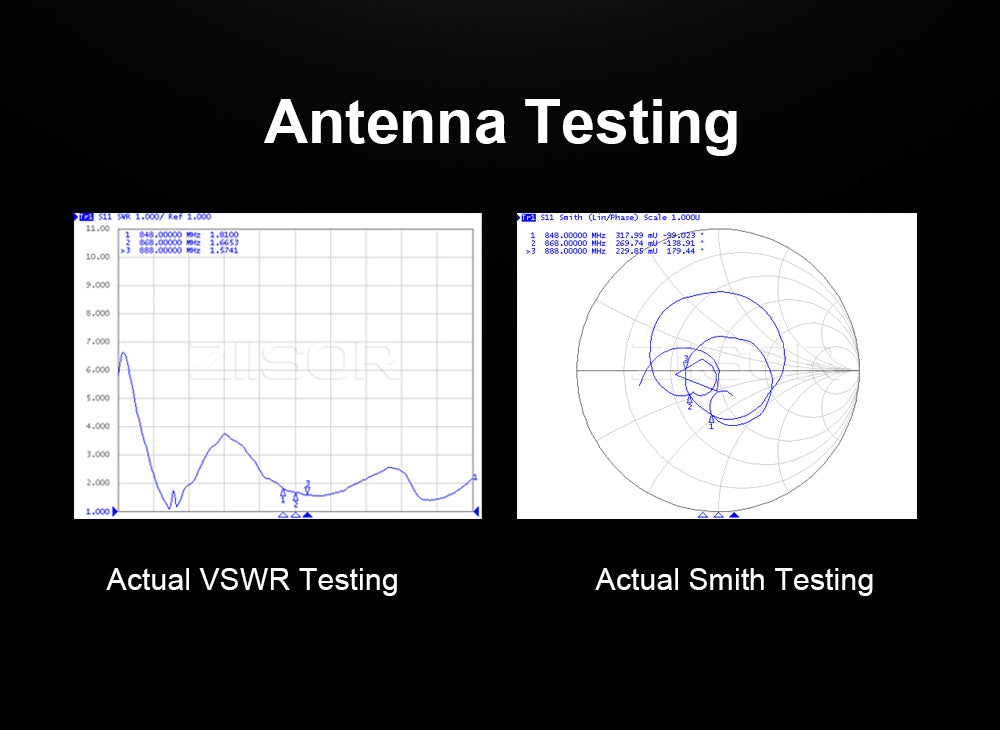

- VSWR: ≤ 1.5
- Impedance: 50 Ω, max. input power: 50 W

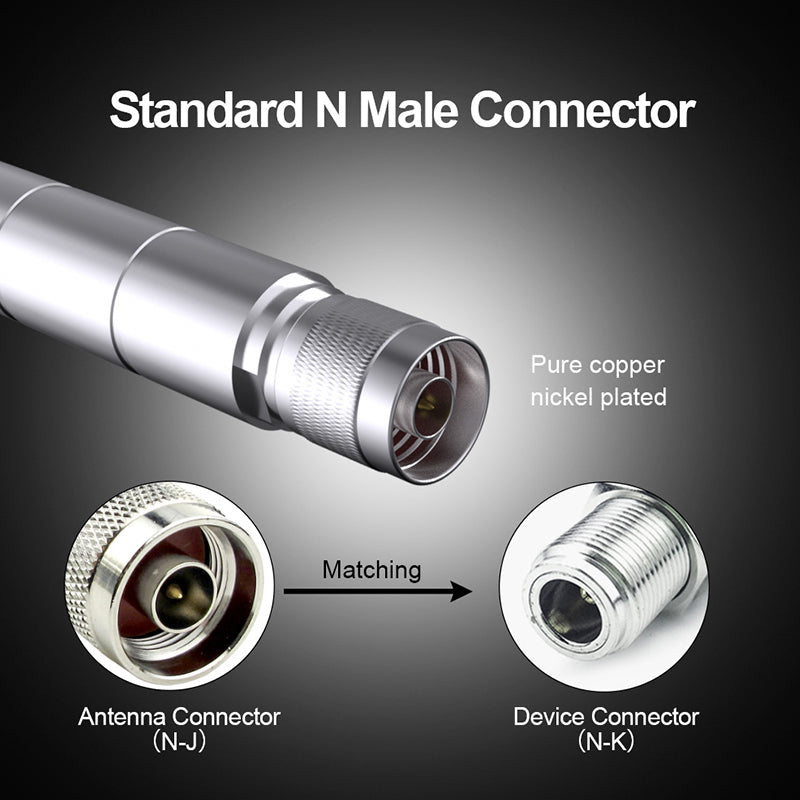

- Connector: N male

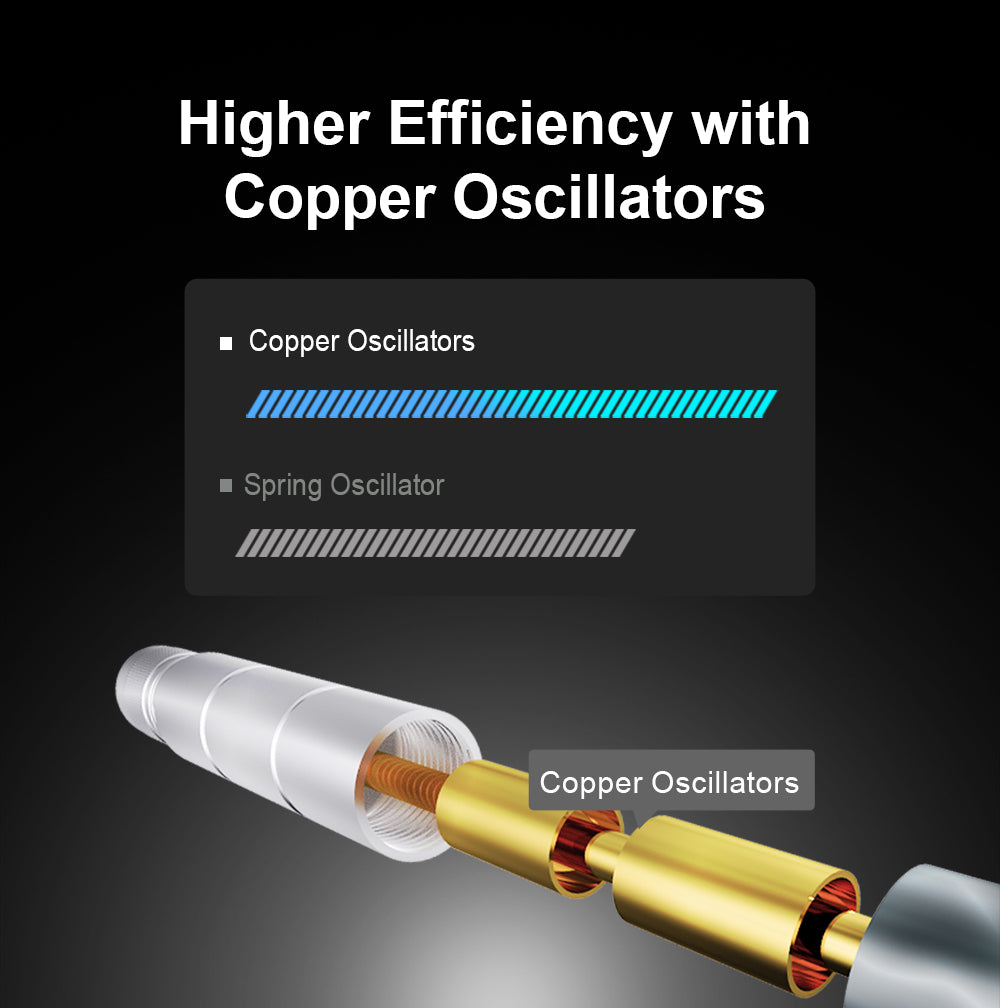

- Radiator: copper, housing: fiberglass, color: gray

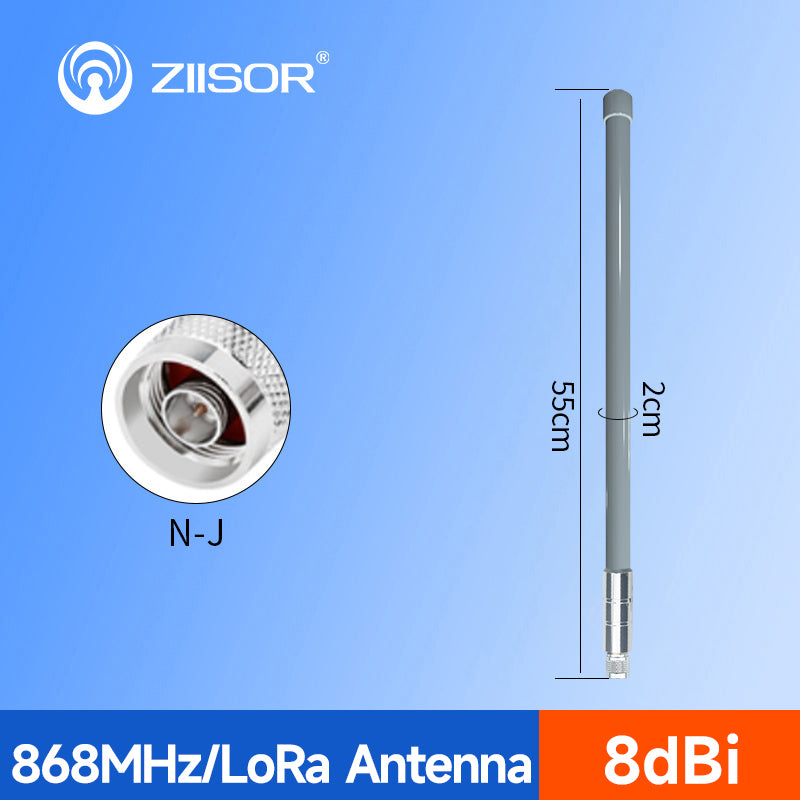

- Length: 550 mm, radiator Ø 20 mm, cap/base Ø 23 mm, weight: approx. 195 g

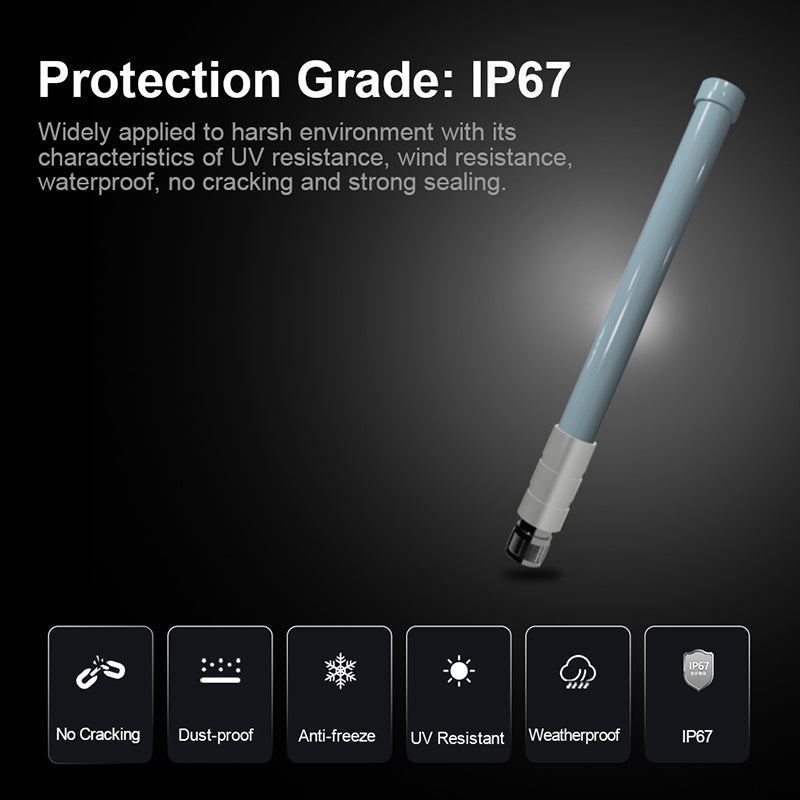

- Ingress protection: IP67, wind resistance: up to 60 m/s
- Operating temperature: −40 °C to +85 °C – fully winter-proof
Connection & mounting
The antenna has an N male connector. For boards with a U.FL connector (Inhero MR2, RAK4630 and similar modules), the N bulkhead jack → U.FL pigtail from the shop is the right match; devices with an SMA or RP-SMA jack need a corresponding adapter to N. More antennas and accessories: 868 MHz antennas at a glance.
Mounting note: For exposed outdoor installations we recommend proper grounding of the antenna system and lightning protection (e.g. a gas discharge arrestor) in the antenna feed line.
Downloads
Ships from stock in Germany.
Manufacturer Information (GPSR)
Manufacturer: Chengdu Ziisor Technology Co., Ltd., B5 Molding Tool Industry Park, No. 199 Xiqu Avenue, Chengdu 611730, China
Responsible economic operator in the EU (importer): Inhero GmbH, Gewerbestraße 19, 08115 Lichtentanne, Germany · info@inhero.de
