In stock, ships from Germany – dispatched directly from Lichtentanne (Saxony), no dropshipping.

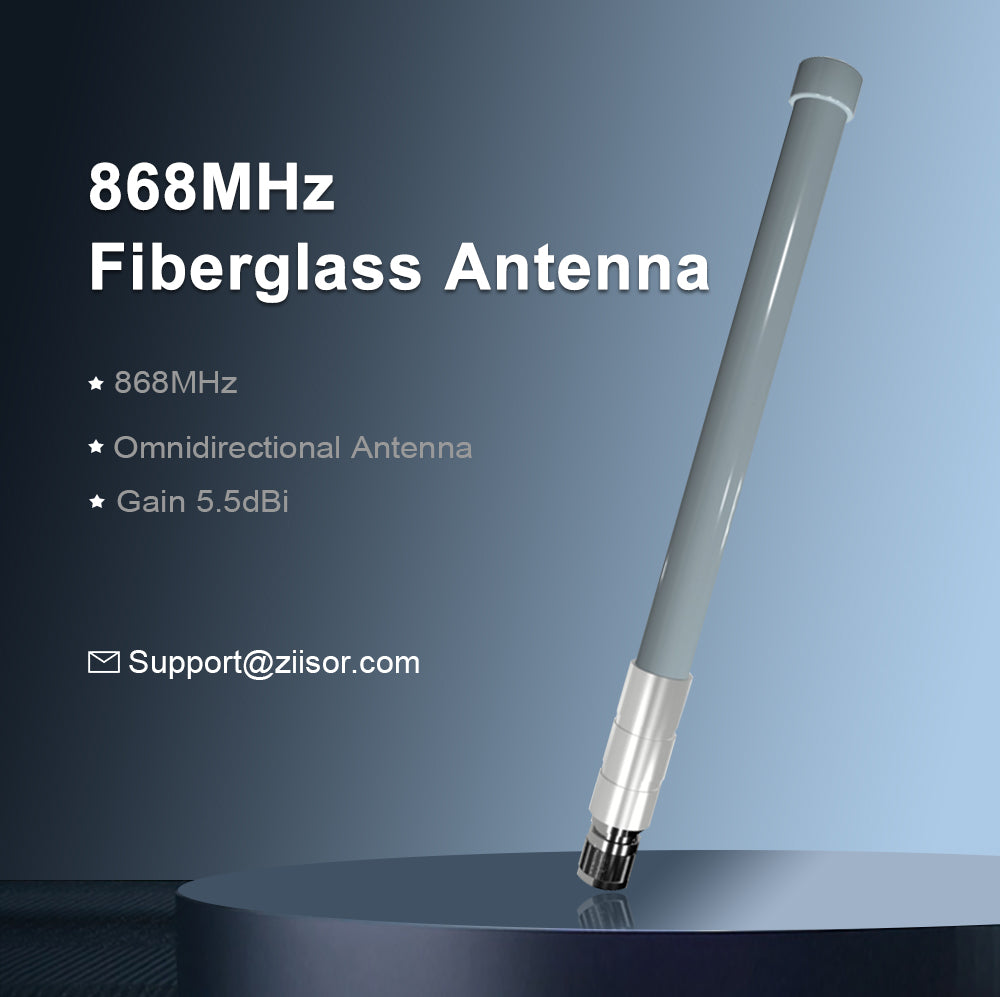

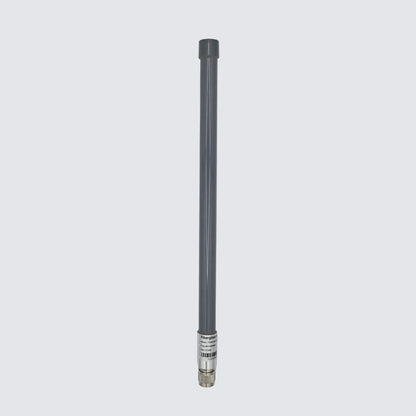

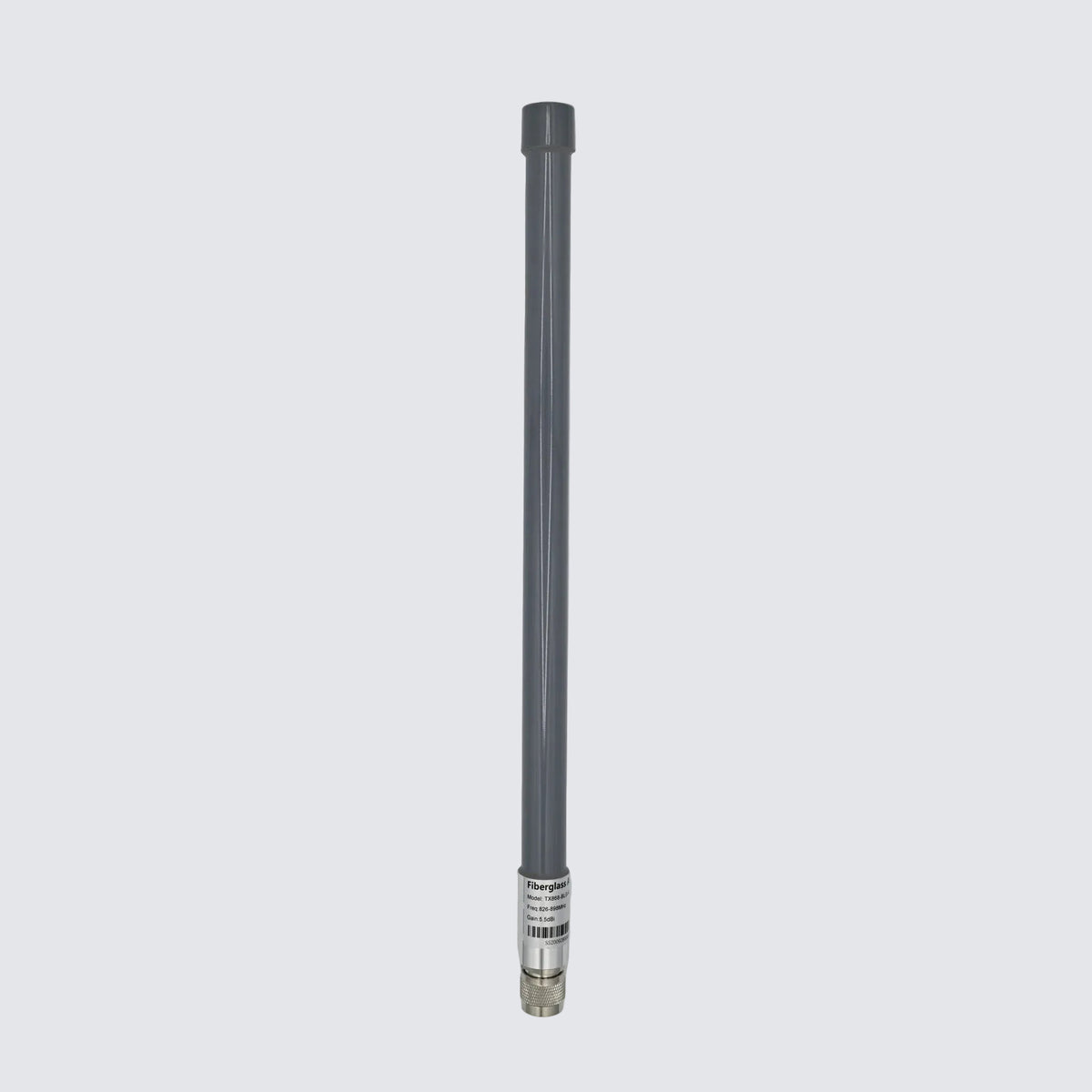

The all-rounder of the ZIISOR series: an 868 MHz omnidirectional antenna in weatherproof fiberglass construction with a well-balanced ratio of gain and beam width. The first choice for most stationary Meshtastic, MeshCore and LoRaWAN nodes – from the solar repeater on the roof to the gateway on the mast.
Typical applications
Stationary Meshtastic and MeshCore repeaters, LoRaWAN gateways (e.g. RAK, Dragino, Milesight), Helium hotspots and TTN gateways in the EU868 band. In strongly undulating terrain the ZIISOR TX868-BLG-26 (3 dBi) is the better choice; for maximum range on level links, the ZIISOR TX868-BLG-55 (8 dBi).
Technical Specifications (per manufacturer datasheet)
- Frequency range: 826–898 MHz
- Antenna gain: 5.5 dBi
- Radiation pattern: omnidirectional, vertically polarized

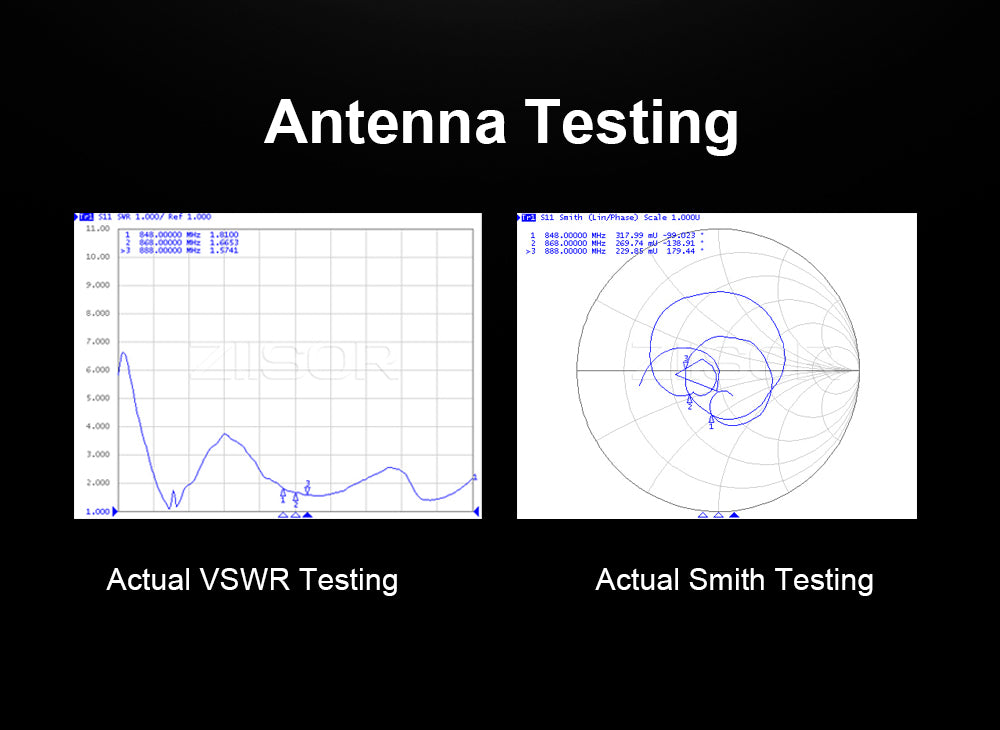

- VSWR: ≤ 1.5
- Impedance: 50 Ω, max. input power: 50 W

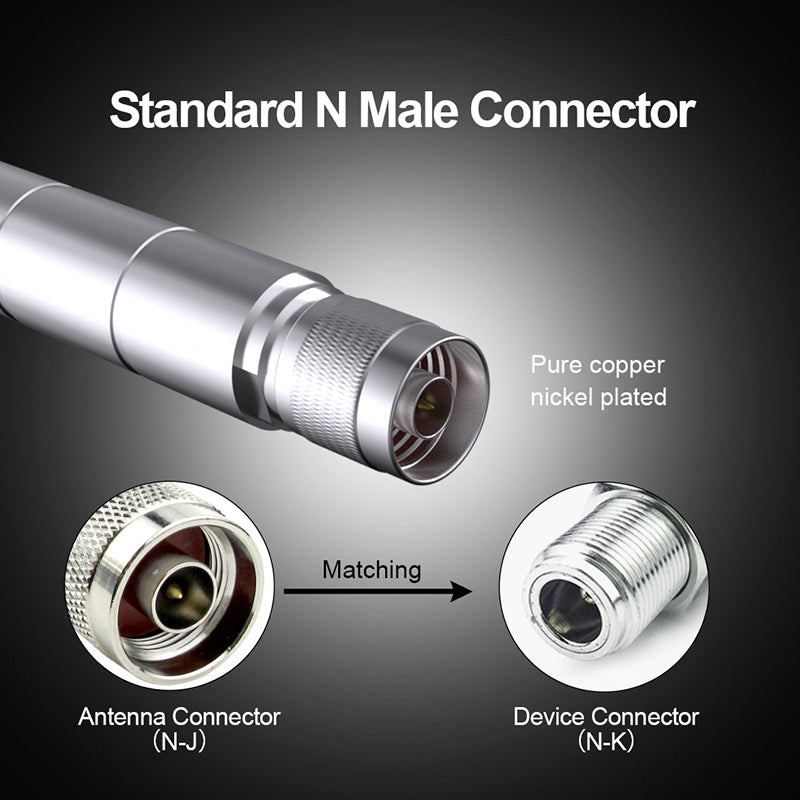

- Connector: N male
- Radiator: copper, housing: fiberglass, color: gray

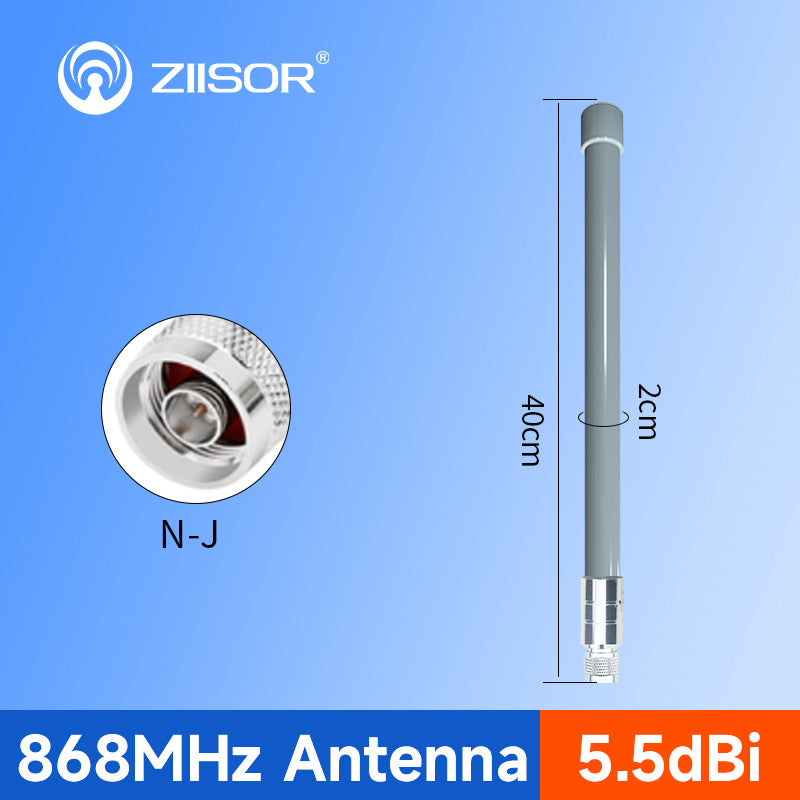

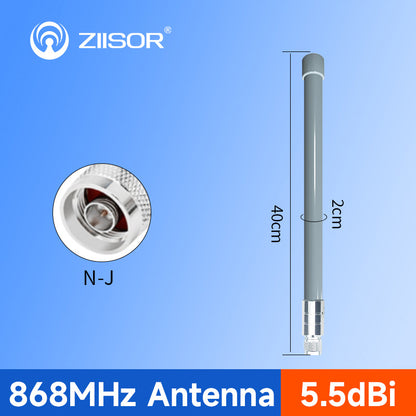

- Length: 400 mm, radiator Ø 20 mm, cap/base Ø 23 mm, weight: approx. 140 g
- Ingress protection: IP67, wind resistance: up to 60 m/s
- Operating temperature: −40 °C to +85 °C – fully winter-proof
Connection & mounting
The antenna has an N male connector. For boards with a U.FL connector (Inhero MR2, RAK4630 and similar modules), the N bulkhead jack → U.FL pigtail from the shop is the right match; devices with an SMA or RP-SMA jack need a corresponding adapter to N. More antennas and accessories: 868 MHz antennas at a glance.
Mounting note: For exposed outdoor installations we recommend proper grounding of the antenna system and lightning protection (e.g. a gas discharge arrestor) in the antenna feed line.
