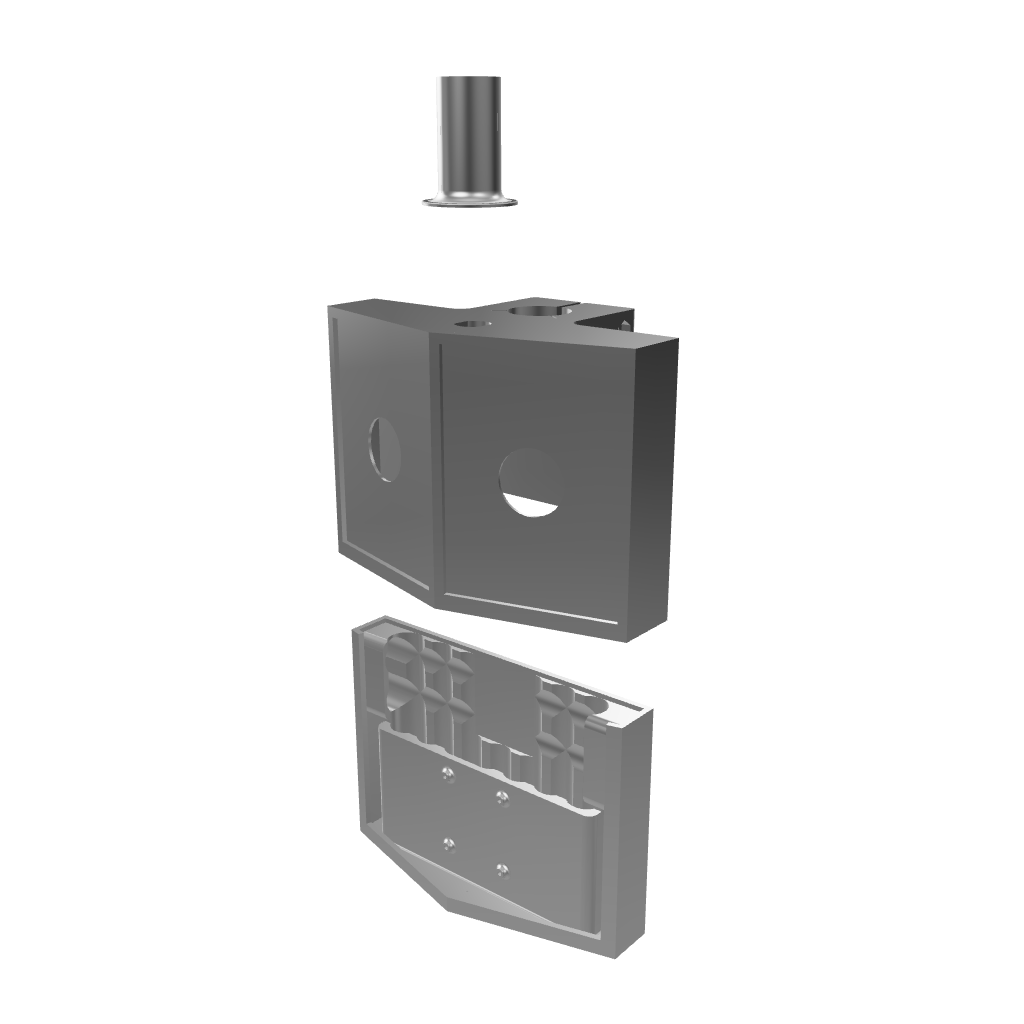

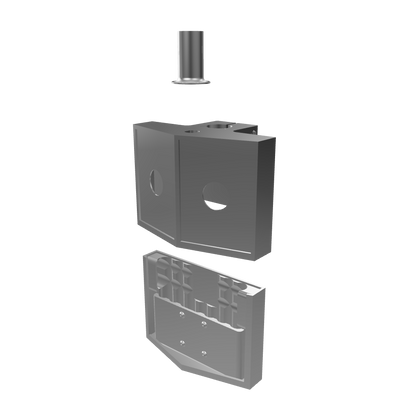

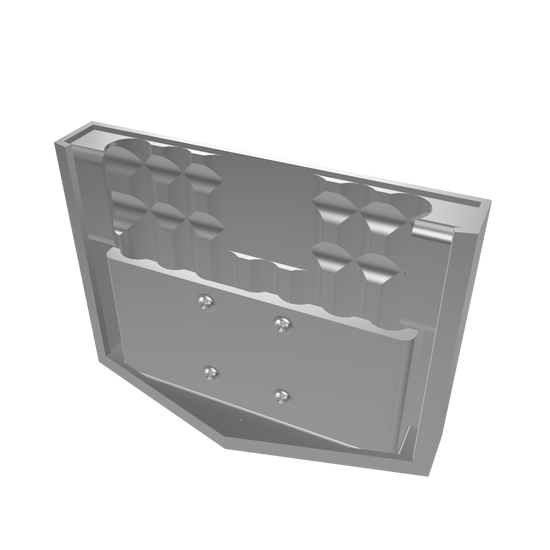

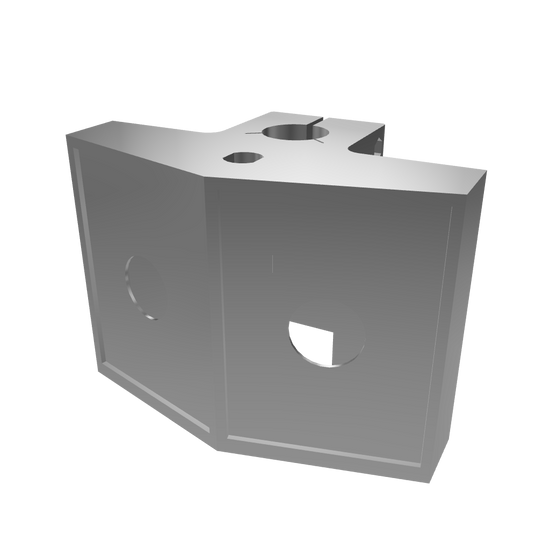

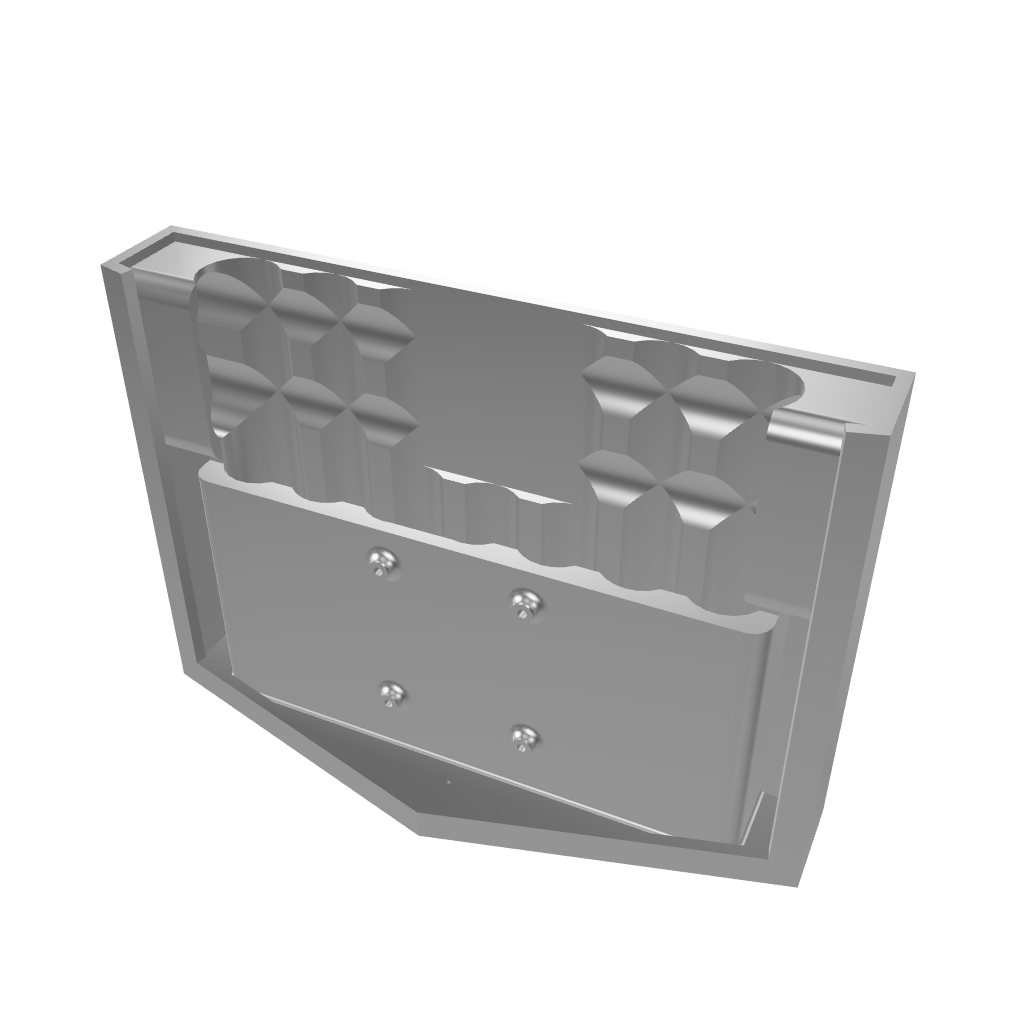

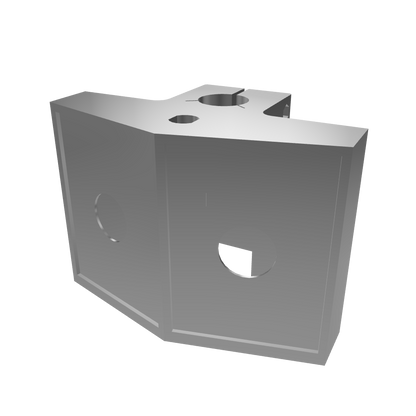

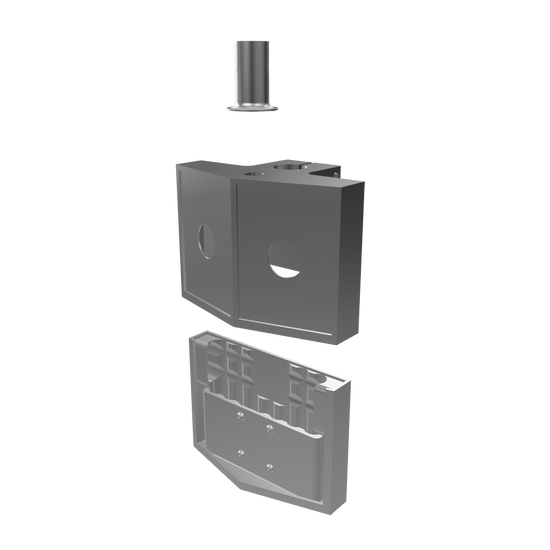

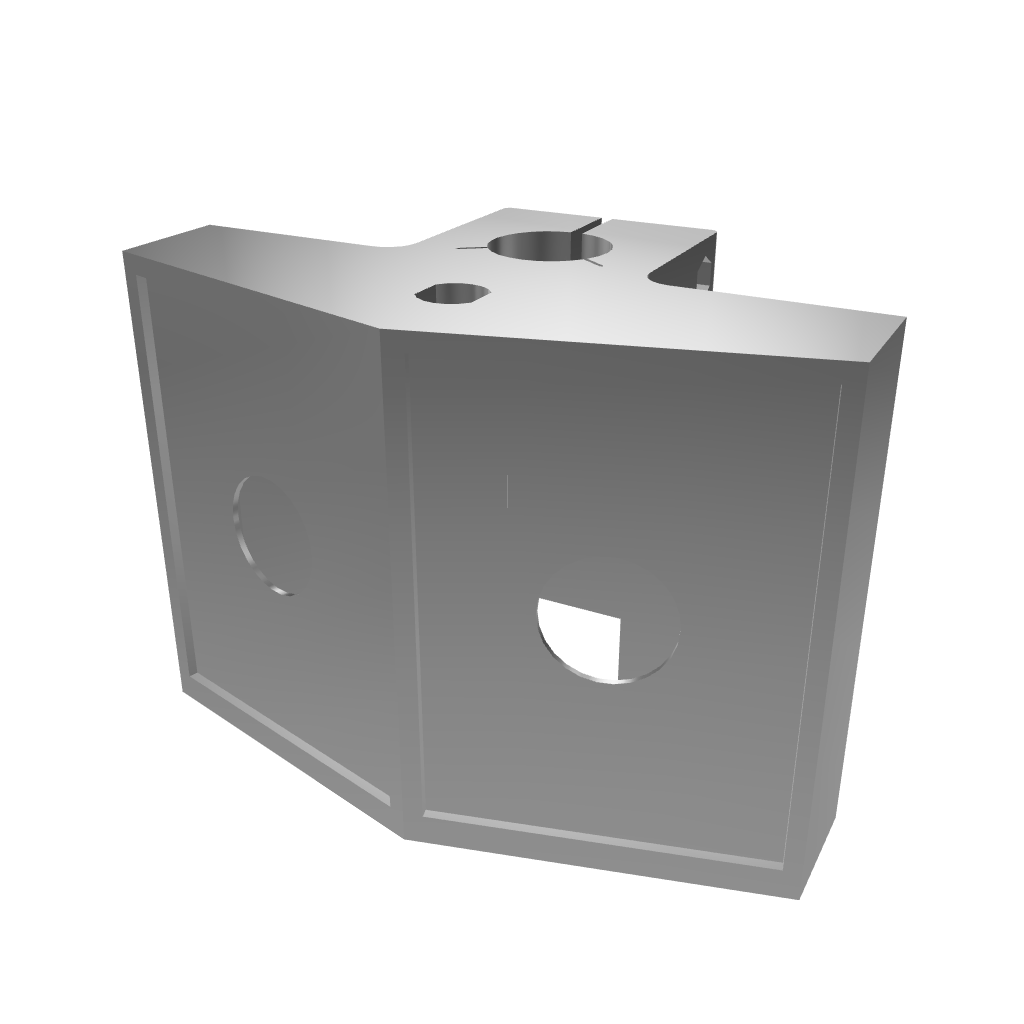

The complete print files for the Hilltop Mesh Repeater L enclosure – free. Mast enclosure for the Inhero MR2 with a large energy buffer: 2 W of solar in vertical south-facing mounting, space for up to eleven 18650 cells, mount for the N bulkhead jack, clamp for a 30 mm mast. Designed for minimal wind load and low visibility – the design principle (vertical south, buffer over panel area) is described on the kit page.
Print recommendation
- Weather- and UV-resistant filament – ASA-CF is very well suited
Mounting

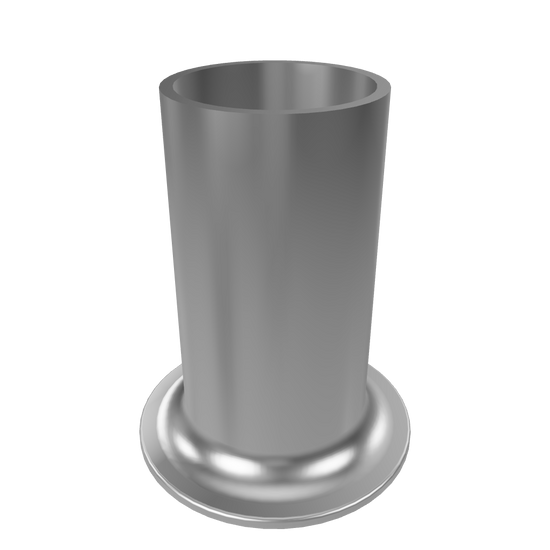

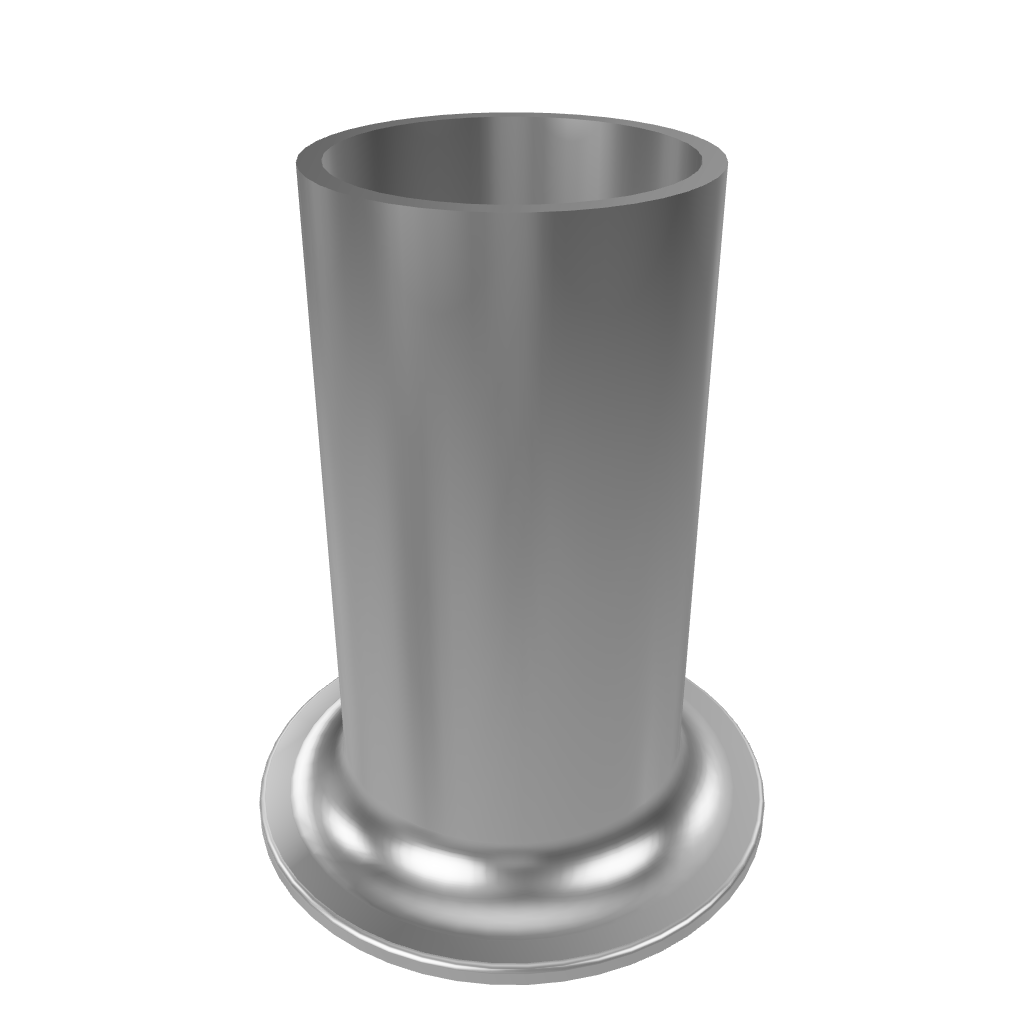

- After antenna installation, glue the antenna base seal to the enclosure and seal the transition to the antenna with adhesive-lined heat-shrink tubing
📖 Detailed build guide – print settings, painted-on supports, battery pack, gluing, sealing and mast mounting, step by step
Matching electronics
The complete Hilltop Mesh Repeater L kit with MR2, two solar panels, solar connector board, battery cable, N pigtail and both screw sets is available separately in the shop.
Enclosure design (STL/3MF files): © 2026 Inhero GmbH, licensed under CC BY-NC-SA 4.0 – Attribution, NonCommercial, ShareAlike. Private printing and derivatives expressly welcome.
