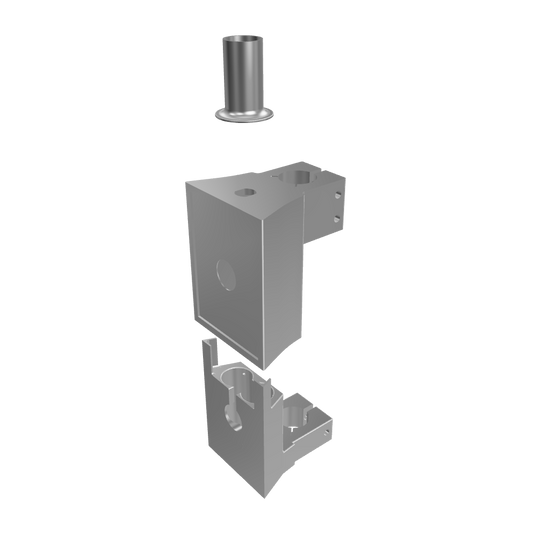

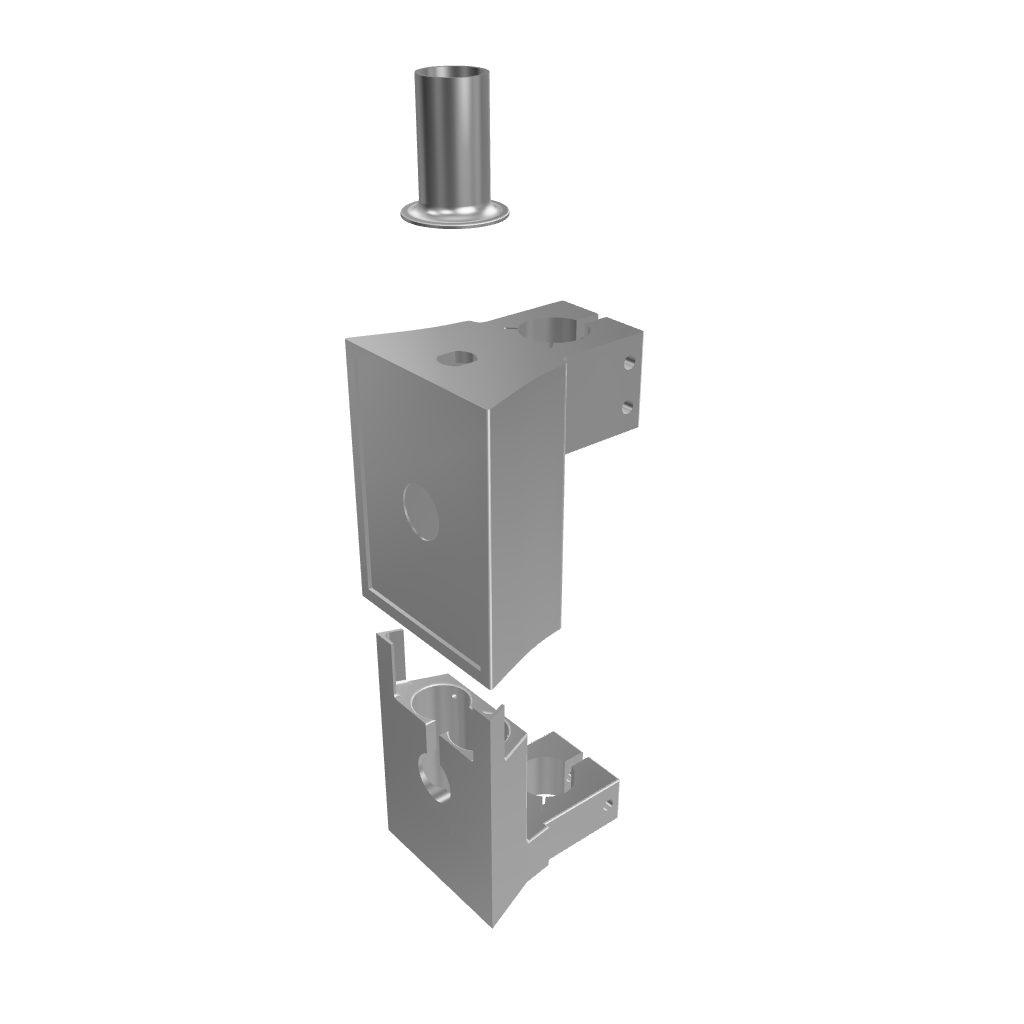

The complete print files for the Hilltop Mesh Repeater S enclosure – free. Compact mast enclosure for the Inhero MR2: 1 W panel in vertical south-facing mounting, compartment for two 26700 cylindrical cells, mount for the N bulkhead jack, clamp for a 30 mm mast. Designed for minimal wind load and low visibility at exposed sites – the design principle (vertical south, buffer over panel area) is described on the kit page.
📖 Build guide: Hilltop Mesh Repeater S – step by step with photos, from the printed part to mast mounting
Print recommendation
- Weather- and UV-resistant filament – ASA-CF is very well suited
Mounting
- Requires 3 × M6×50 mm bolts (TX30) and 3 × M6 nuts – the nuts sit captive in the hex pockets, so no wrench is needed. A matching stainless steel bolt set is available in the shop
- After antenna installation, glue the antenna base seal to the enclosure and seal the transition to the antenna with adhesive-lined heat-shrink tubing
Matching electronics
The complete Hilltop Mesh Repeater S kit with MR2, solar panel, battery cable, N pigtail and both screw sets is available separately in the shop.
Enclosure design (STL/3MF files): © 2026 Inhero GmbH, licensed under CC BY-NC-SA 4.0 – Attribution, NonCommercial, ShareAlike. Private printing and derivatives expressly welcome.
