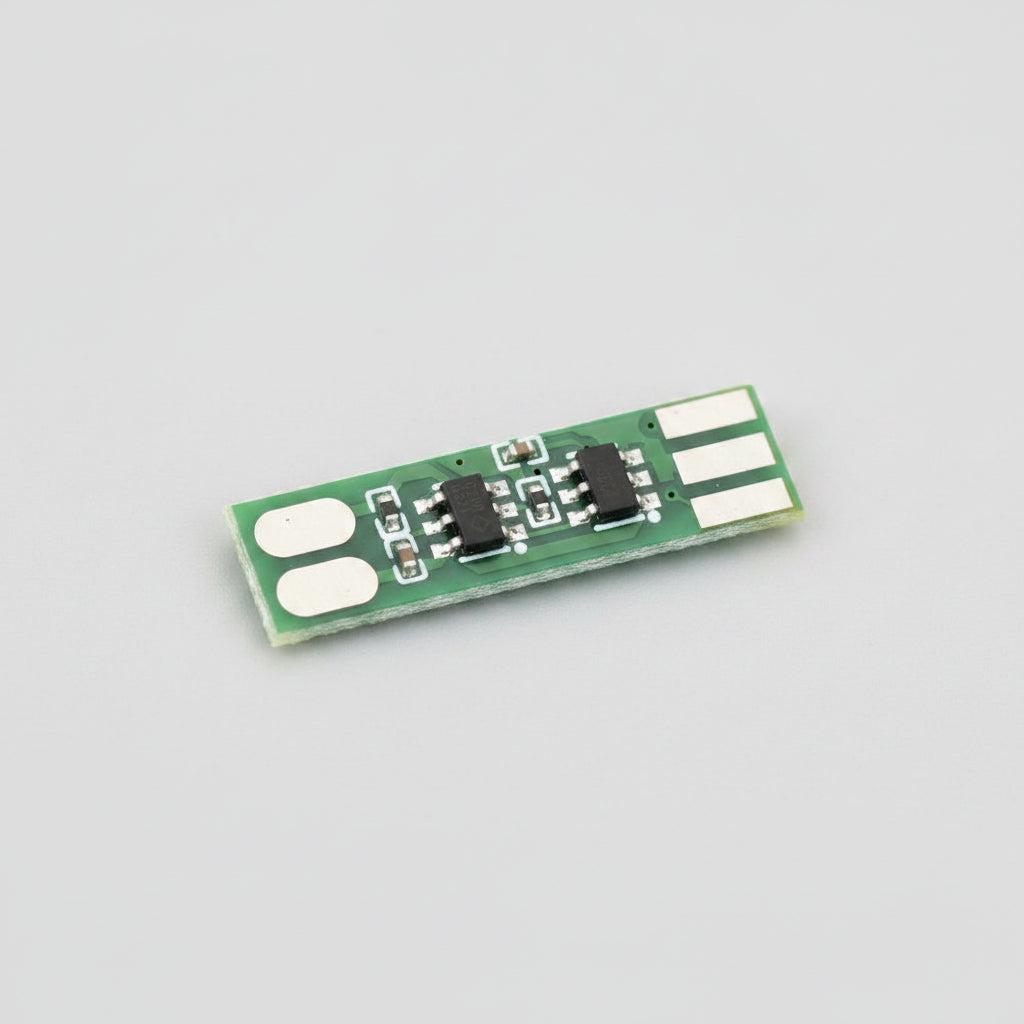

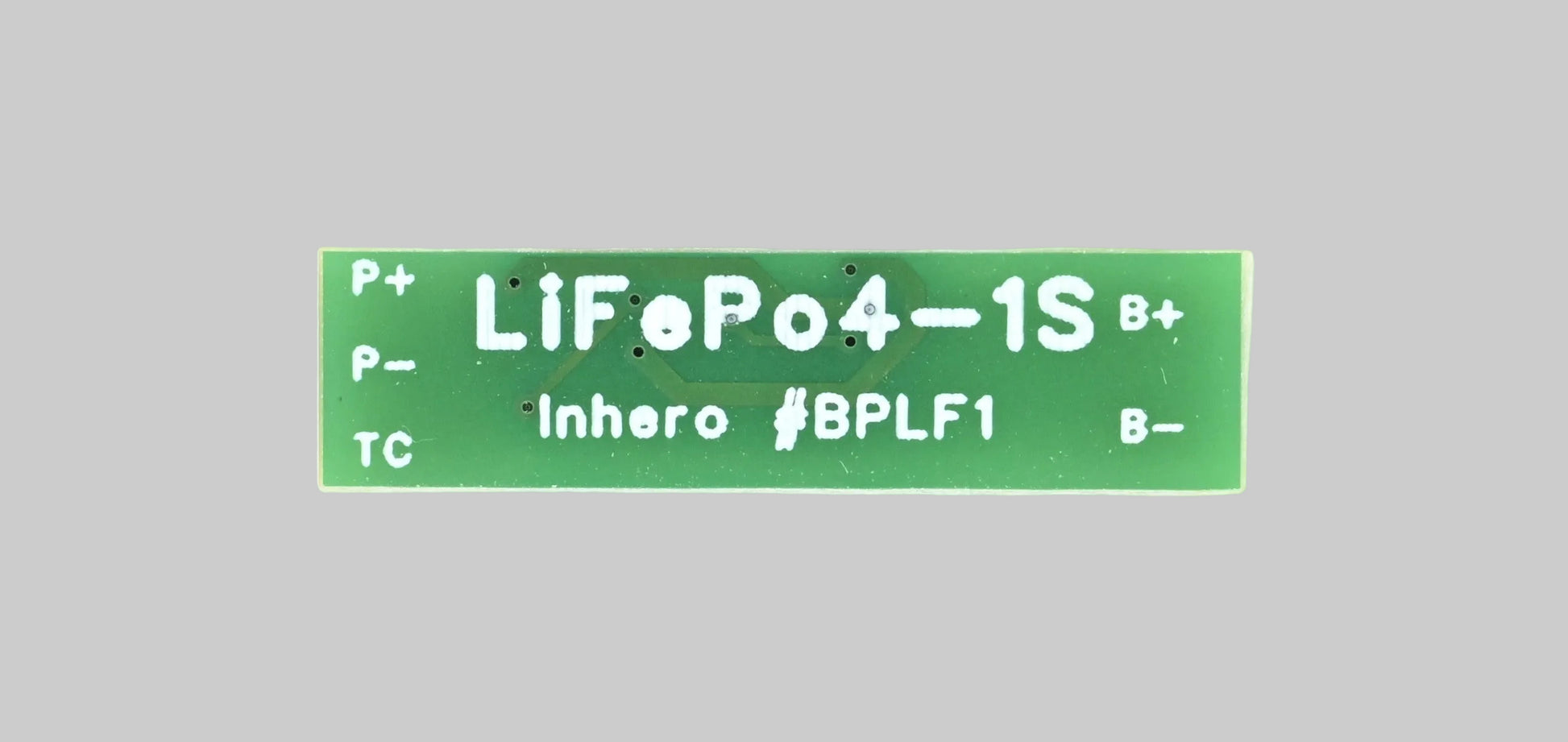

Battery Protection Module LiFePO4 1S with Temperature Sensor for MR-2

• Correct LiFePO₄ cutoff thresholds: overcharge protection at 3.75 V, over-discharge protection at 2.1 V, short-circuit protection
• Integrated temperature sensor – supplies the MR-2 with the cell temperature for temperature-controlled charging
• HY2112-BB protection IC – genuine 1S LiFePO₄ protection modules are hard to find on the market
• Compact: 22 × 6.2 × 2.8 mm, soldered directly to the cell
• Also available pre-assembled – in the battery cable for the MR-2 with protection module

Description

Battery protection module for single-cell LiFePO₄ batteries (1S) with an integrated temperature sensor – protects the cell against overcharge, over-discharge and short circuit while supplying the Inhero MR-2 with the cell temperature for charge control.

The module is based on the HY2112-BB with the cutoff thresholds appropriate for LiFePO₄. 1S protection modules for LiFePO₄ are far rarer on the market than Li-ion modules – and virtually none of them include a temperature sensor matched to the MR-2.

Technical specifications

• Protection IC: HY2112-BB
• Overcharge protection: 3.75 V
• Over-discharge protection: 2.1 V
• Short-circuit protection: yes
• Temperature sensor: integrated, matched to the Inhero MR-2
• Cell chemistry: LiFePO₄, single cell (1S)
• Dimensions: 22 × 6.2 × 2.8 mm

What's in the box

• 1× battery protection module LiFePO₄ 1S with temperature sensor

⚠ Important notes

• For LiFePO₄ cells only. For Li-ion and LiPo, please use the corresponding Li-ion version – the cutoff thresholds are not compatible and mixing them up will damage the cell.
• The module is soldered to the cell. If you would rather avoid soldering at the cell, it is available pre-assembled in the battery cable for the MR-2 with protection module.
• ESD-sensitive assembly – handle only with appropriate ESD protection.
• Battery not included.
