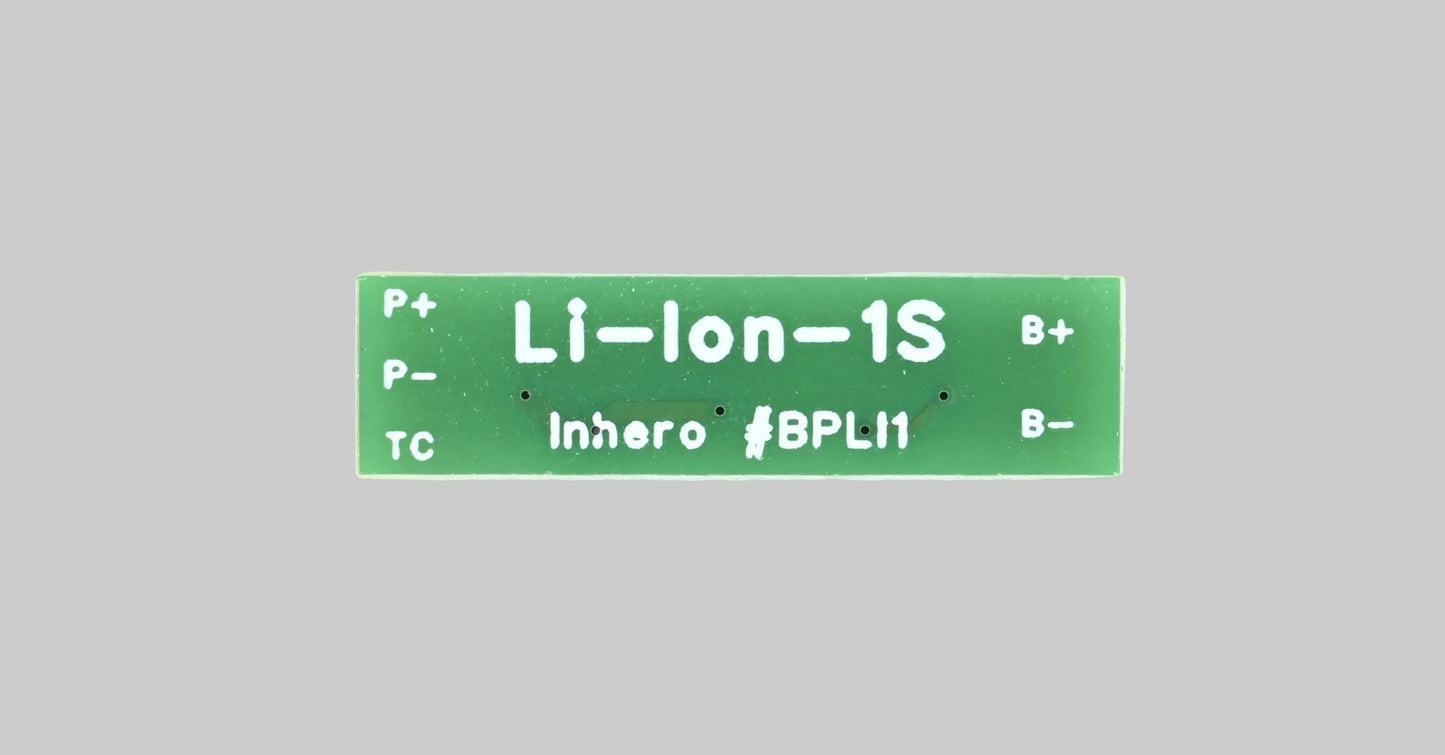

Battery Protection Module Li-ion 1S with Temperature Sensor for MR-2

• Protects 1S Li-ion and LiPo cells: overcharge protection at 4.275 V, over-discharge protection at 2.8 V, short-circuit protection
• Integrated temperature sensor – supplies the MR-2 with the cell temperature for temperature-controlled charging
• BQ29700 protection IC from Texas Instruments instead of the usual DW01A
• Compact: 22 × 6.2 × 2.8 mm, soldered directly to the cell
• Also available pre-assembled – in the battery cable for the MR-2 with protection module

Description

Battery protection module for single-cell Li-ion batteries (1S) with an integrated temperature sensor – protects the cell against overcharge, over-discharge and short circuit while supplying the Inhero MR-2 with the cell temperature for charge control.

The module is based on the BQ29700 from Texas Instruments. Most protection modules on the market use the simpler DW01A and come without a temperature sensor matched to the MR-2.

Technical specifications

• Protection IC: BQ29700 (Texas Instruments)
• Overcharge protection: 4.275 V
• Over-discharge protection: 2.8 V
• Short-circuit protection: yes
• Temperature sensor: integrated, matched to the Inhero MR-2
• Cell chemistry: Li-ion / LiPo, single cell (1S)
• Dimensions: 22 × 6.2 × 2.8 mm

What's in the box

• 1× battery protection module Li-ion 1S with temperature sensor

⚠ Important notes

• For Li-ion/LiPo cells only. For LiFePO₄, please use the corresponding LiFePO₄ version – the cutoff thresholds are not compatible and mixing them up will damage the cell.
• The module is soldered to the cell. If you would rather avoid soldering at the cell, it is available pre-assembled in the battery cable for the MR-2 with protection module.
• ESD-sensitive assembly – handle only with appropriate ESD protection.
• Battery not included.
