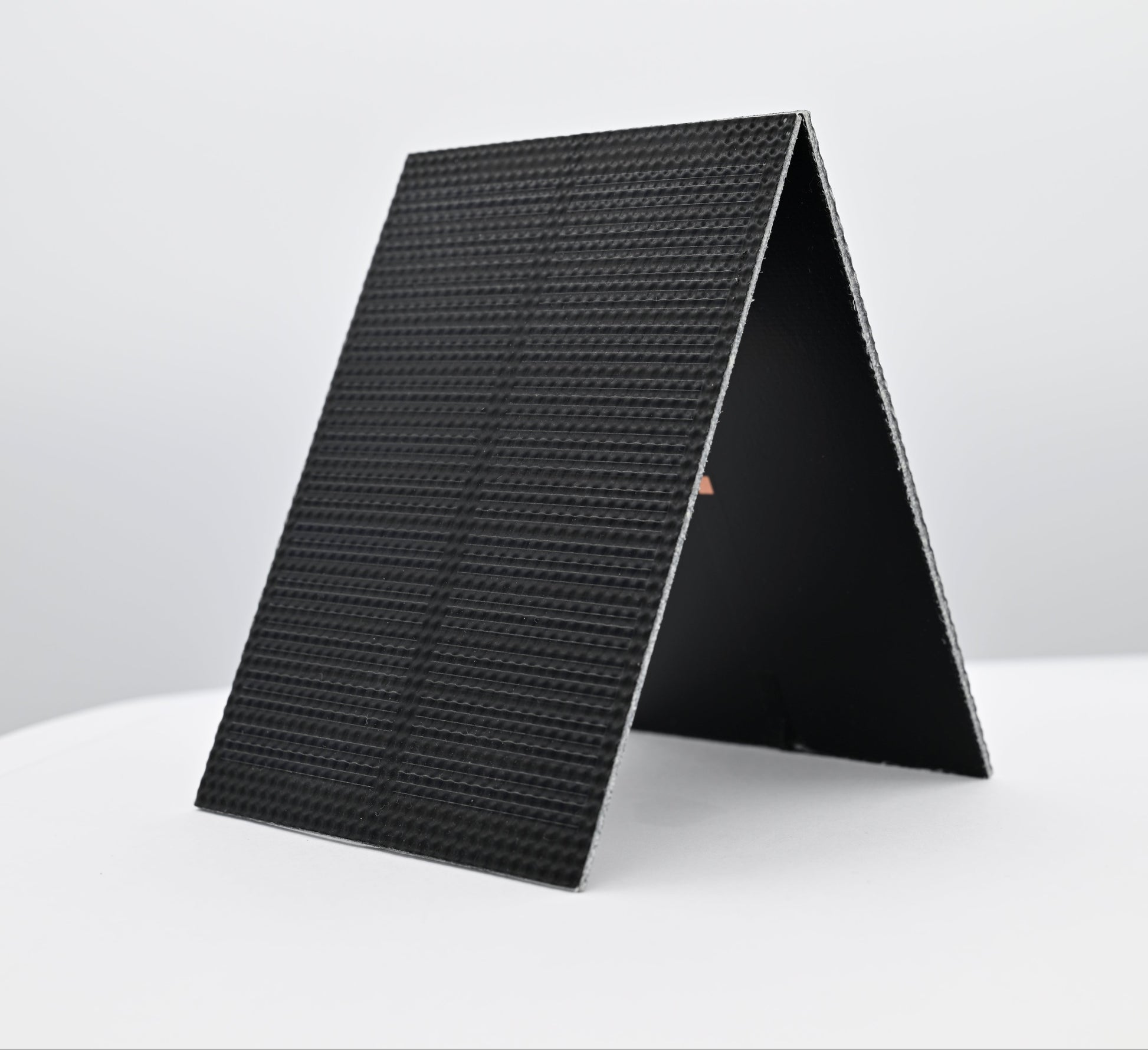

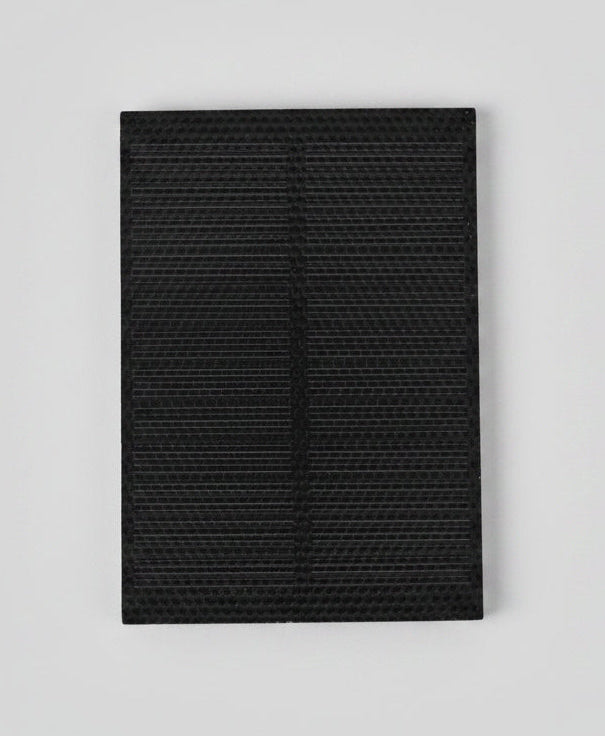

Solar Panel 6V / 1W, ETFE, Monocrystalline, 110 × 80 mm

• Monocrystalline cells with ETFE lamination – lightweight, UV-stable and permanently weatherproof for autonomous outdoor use
• 7.3 V open-circuit voltage, 160 mA short-circuit current – realistic peak output approx. 0.85 Wp
• Compact 110 × 80 mm, solder pads centred on the rear
• Optionally with a polarity-correct, pre-soldered and tested connection cable – plugs straight into the MR-2
• Up to three panels can be connected in parallel via the Solar Connector Board

Description

6V/1W ETFE solar panel, monocrystalline – a compact solar supply for autonomous LoRa mesh nodes. The ideal companion to the Inhero MR-2 solar mesh repeater with its MPPT charge input.

Versions

• without cable: bare panel with solder pads on the rear – for your own cable assembly
• with pre-soldered connection cable: the solar connection cable (JST-PH 2.0, 2-pin, 20 cm) comes already soldered on with correct polarity and tested – plugs straight into the MR-2

Technical specifications

• Open-circuit voltage (Voc): 7.3 V
• Short-circuit current (Isc): 160 mA
• Rated power: 1 W (peak) – realistic peak output approx. 0.85 Wp at a typical fill factor
• Cell type: monocrystalline, ETFE-laminated (lightweight, UV- and weather-resistant)
• Dimensions: 110 × 80 mm

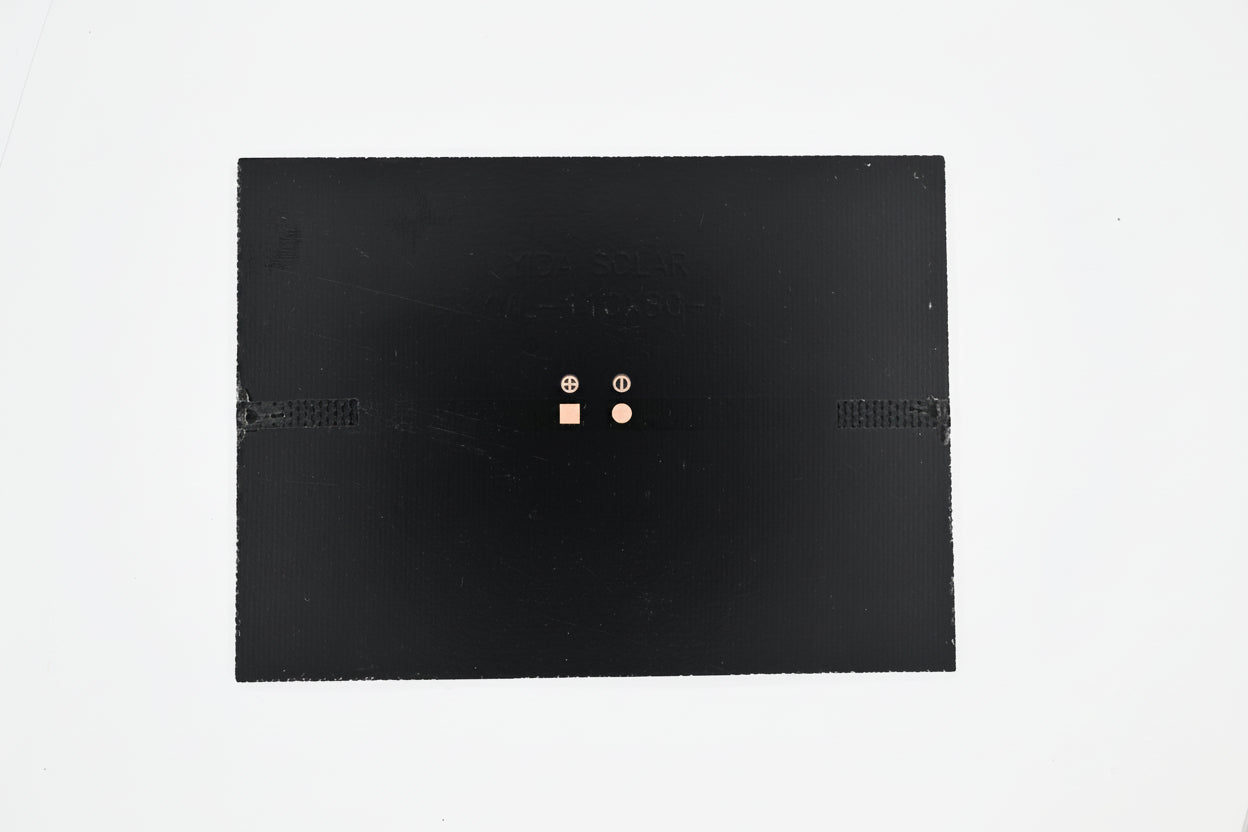

• Connection: solder pads centred on the rear

The ETFE lamination makes the panel rugged and UV-stable over the long term – suitable for continuous autonomous outdoor operation.

What's in the box

• 1× solar panel 6V / 1W in the chosen version

⚠ Important note

The MR-2 has no hardware reverse-polarity protection on the solar input. Check polarity before connecting for the first time – especially if you solder the cable yourself.

Multiple panels in parallel

Up to three identical panels can be connected in parallel using the Solar Connector Board. The currents add up while the voltage stays the same – useful at sites with little light or short sun windows.
